ESP32 Module for AC Infinity AirTap T4/T6, Made for ESPHome

Enhance Your AC Infinity T4/T6 Vents with Our Smart ESP32 Module

The ESP32 Module for AC Infinity Airtap T4/T6 by SiloCityLabs is a custom PCB designed to replace the standard PCB in the AC Infinity Airtap T-Series. Engineered to fit seamlessly within the original enclosure, this upgrade brings ESPHome certification, enabling smart home integration with Home Assistant.

Compatible with both 3-button and 4-button configurations, the ESP32 Module enhances the functionality of the Airtap T-Series, making it the perfect upgrade for users looking to add advanced smart features to their setup.

Key Features:

• Made for ESPHome Approved device! - See official ESPHome device page: 4 button, 3 button
• Smart Home Integration: Easily connect your vents to your smart home system for convenient remote control and automation through Wi-Fi.

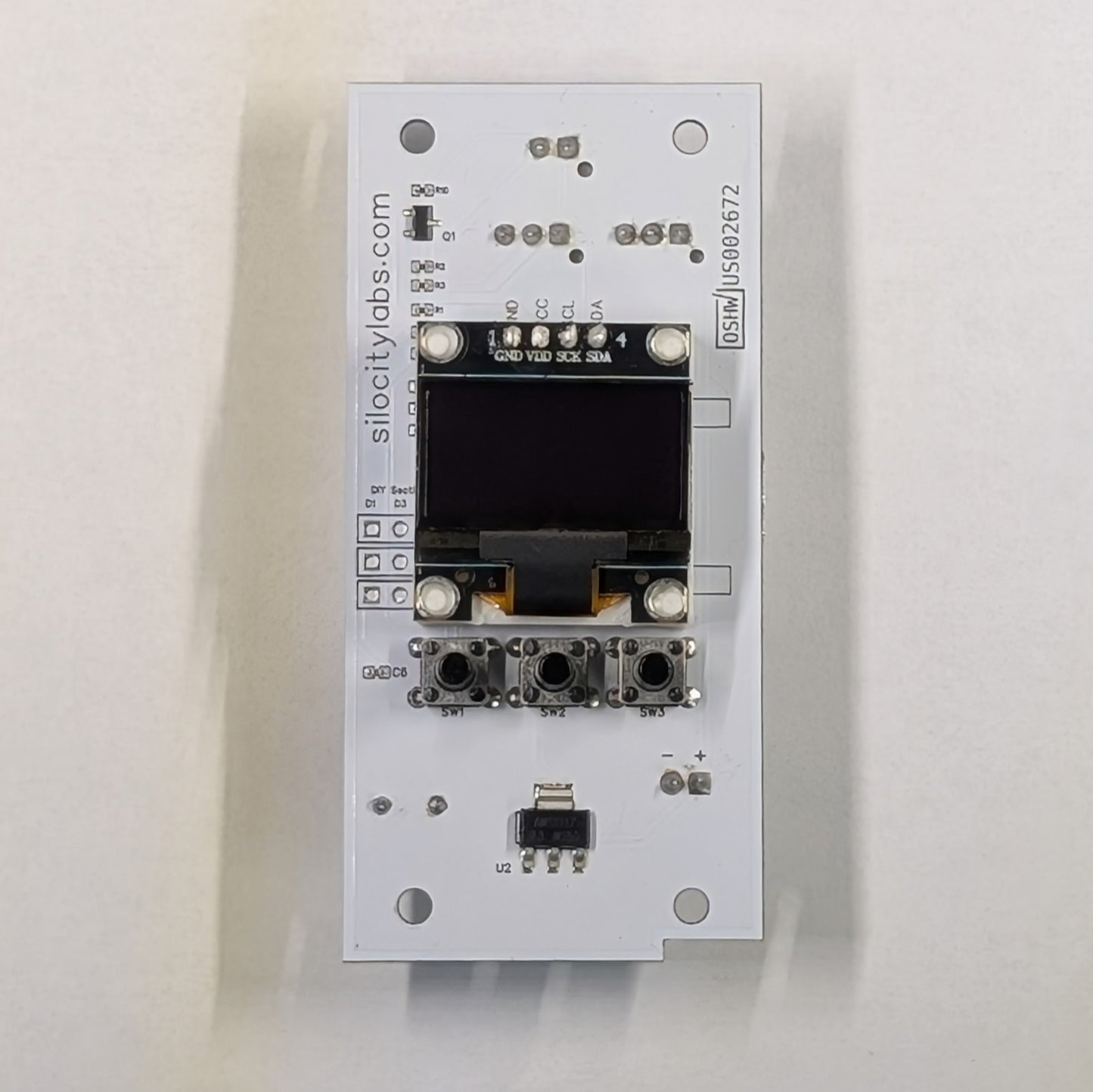

• Upgraded Visual Interface: Equipped with an SSD1306 OLED display, our module allows you to monitor system statuses and display custom messages with clarity.
• New Display Bracket: Starting March 1st 2025 all shipments will include a free display bracket in either white or black.

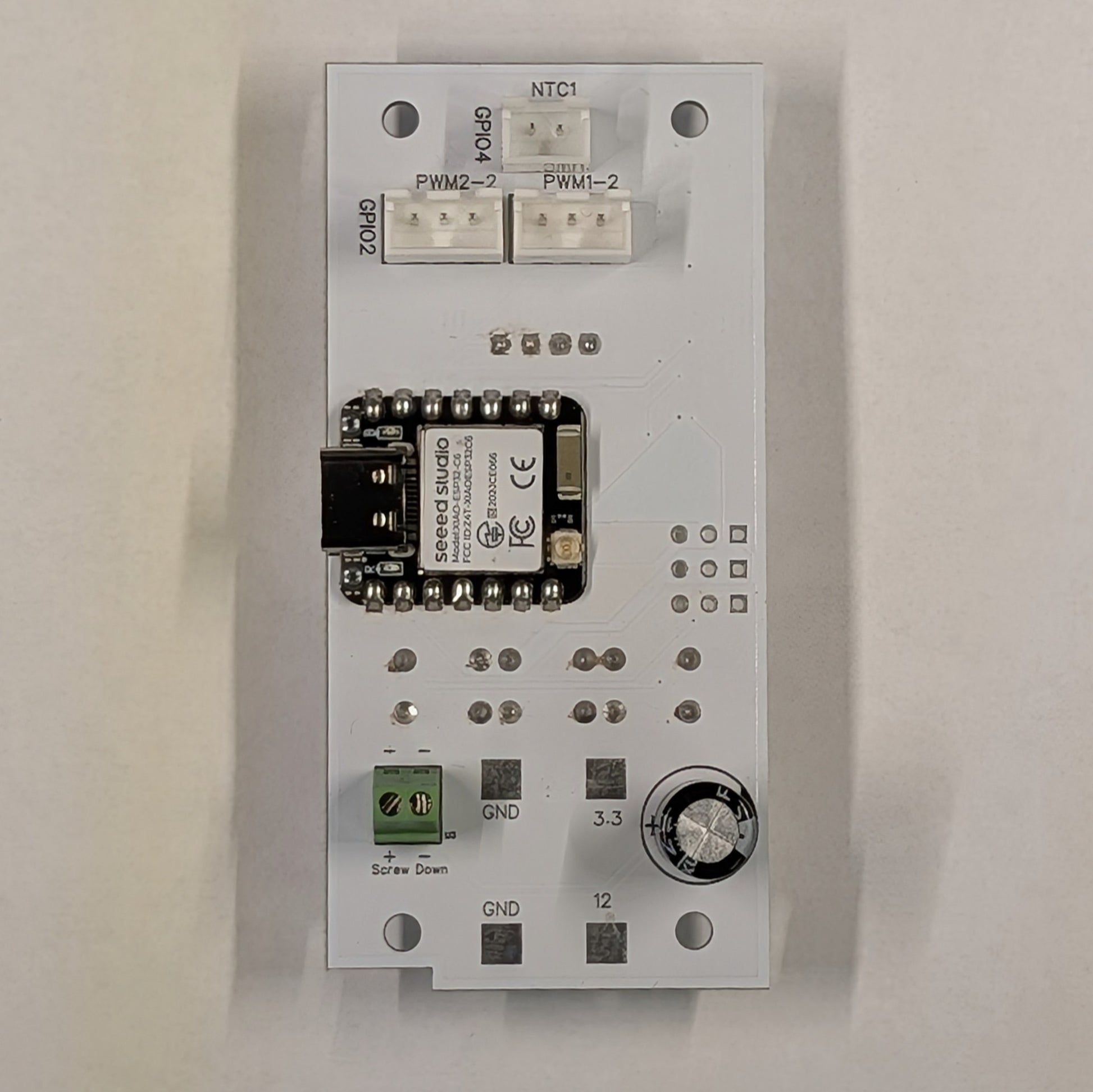

• Seamless Compatibility: Designed to work with the original PWM fans and NTC thermistor, ensuring a smooth upgrade without replacing your existing hardware.
• Open Source Hardware Certified: Proudly certified by the Open Source Hardware Association (OSHWA), ensuring transparency and community collaboration. Explore and contribute to our design on GitHub.

User-Friendly Setup:

• Plug-and-Play: This module is ready to deploy straight out of the box for an easy installation experience. Please note: The 3-button version requires simple soldering for power connectivity.

Compatibility:

Ensure a perfect fit by confirming the compatibility of your device with the following AC Infinity models:

• AC-RBF6-W
• AC-RBF4-W
• AC-RBF4-B
• AC-RBF42-W
• AC-RBF42-B
• AC-RBFF6-B
• AC-RBF62-W
• AC-RBF62-B

Technical Specifications:

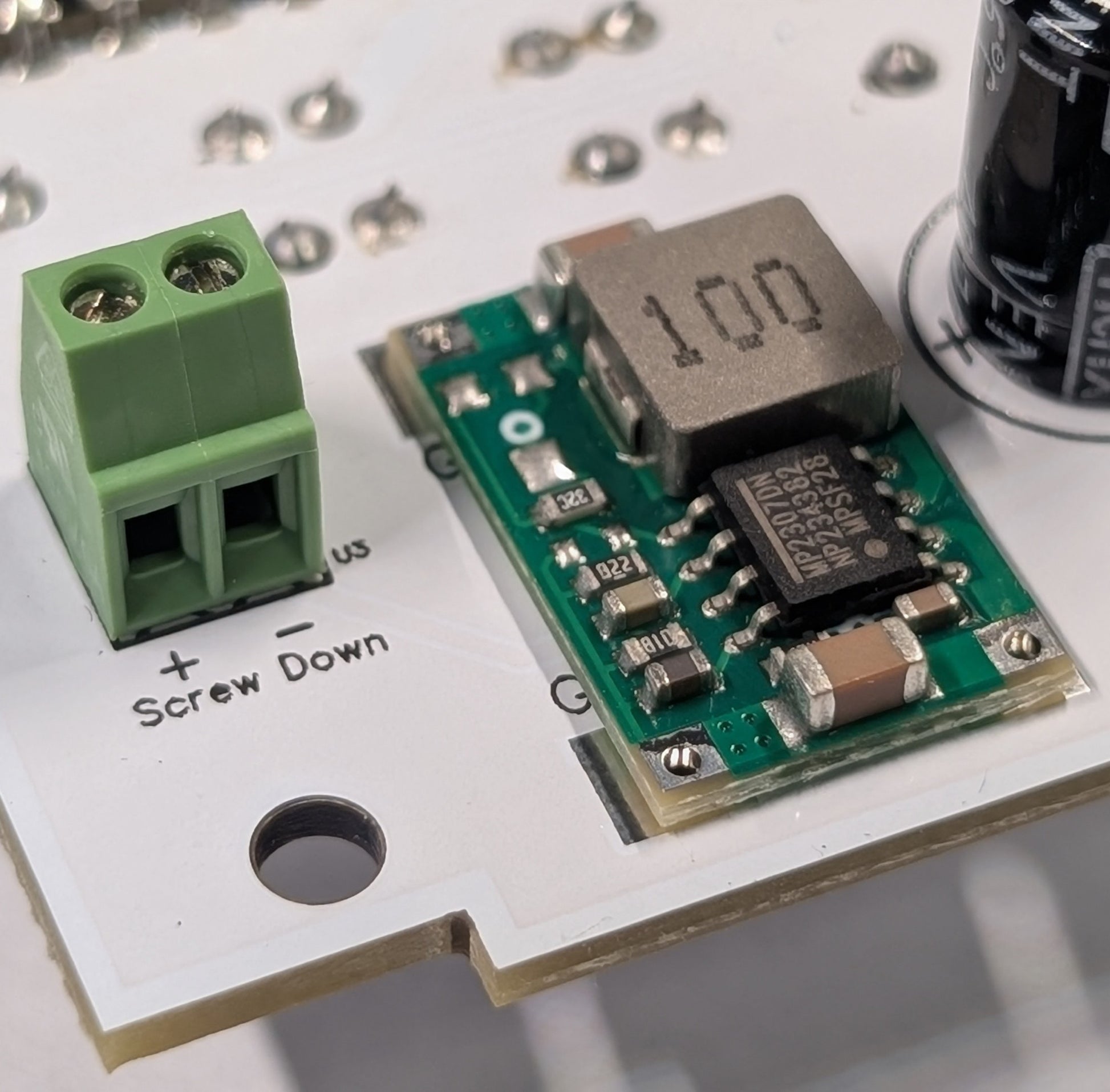

• Power Requirements: 12V DC (Note: Power cable not included; soldering may be required based on the board revision)
• Wireless Module: ESP32-C3, optimized for robust Wi-Fi connectivity and seamless smart home integration. Similar to ESP8266 or ESP8285 in terms of compatibility of firmware.
• Display: High-resolution SSD1306 OLED display for enhanced visibility
• Firmware: Pre-configured for ESPHome, complete with easy-to-follow setup links
• Dimensions: Perfectly sized to fit within the existing AirTap enclosures

Empower your home’s ventilation with intelligent control and monitor your environment in a way that was never possible before. Our ESP32 Module transforms your AC Infinity vents into a central part of your smart home ecosystem.
