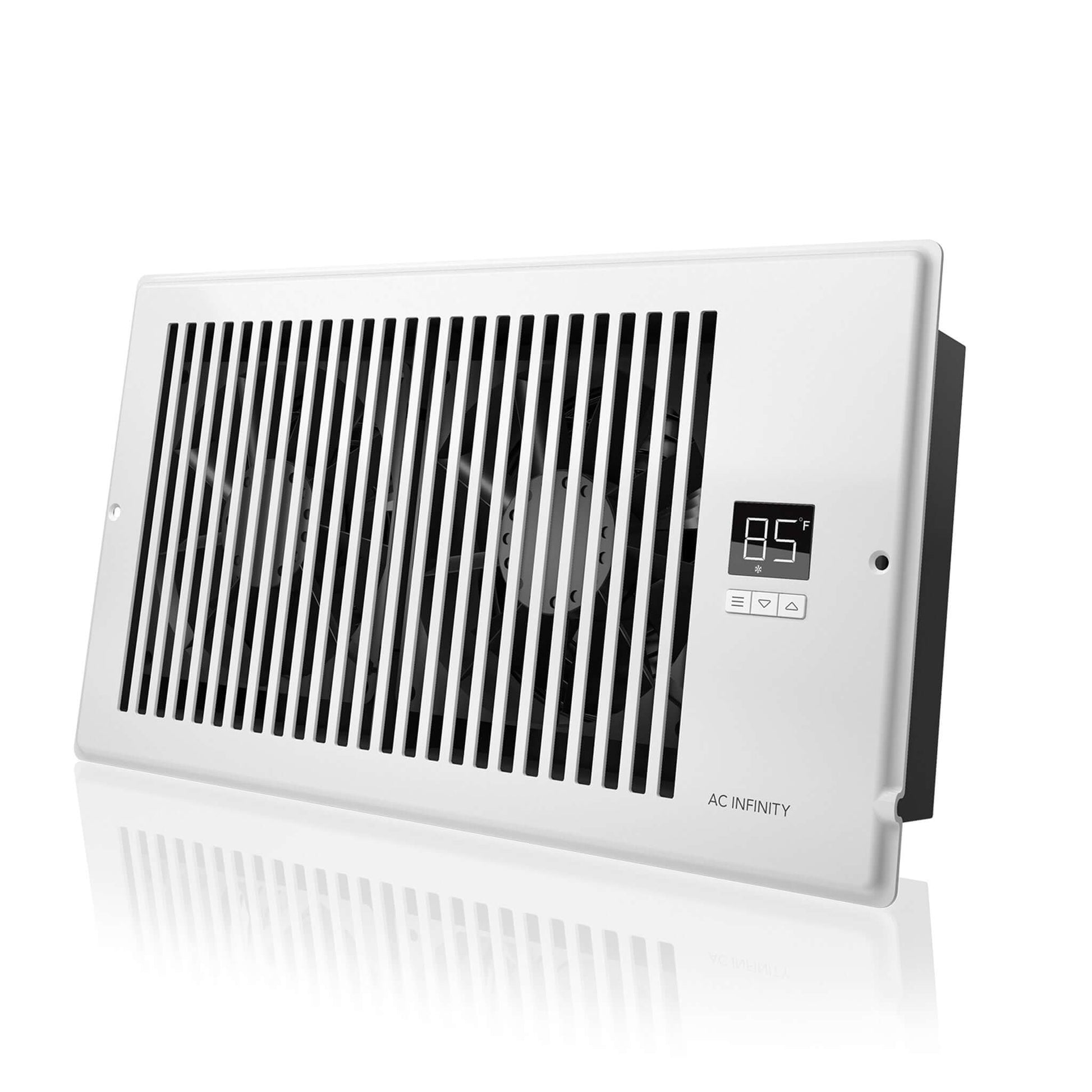

AC Infinity AIRTAP T6, Quiet Register Booster Fan System, White, for 6" x 12" Registers

AC Infinity AIRTAP T6, Quiet Register Booster Fan System, White, for 6" x 12" Registers

Regular price $72.99 USD
Regular price $0.00 USD Sale price $72.99 USD
Sale Sold out
Description

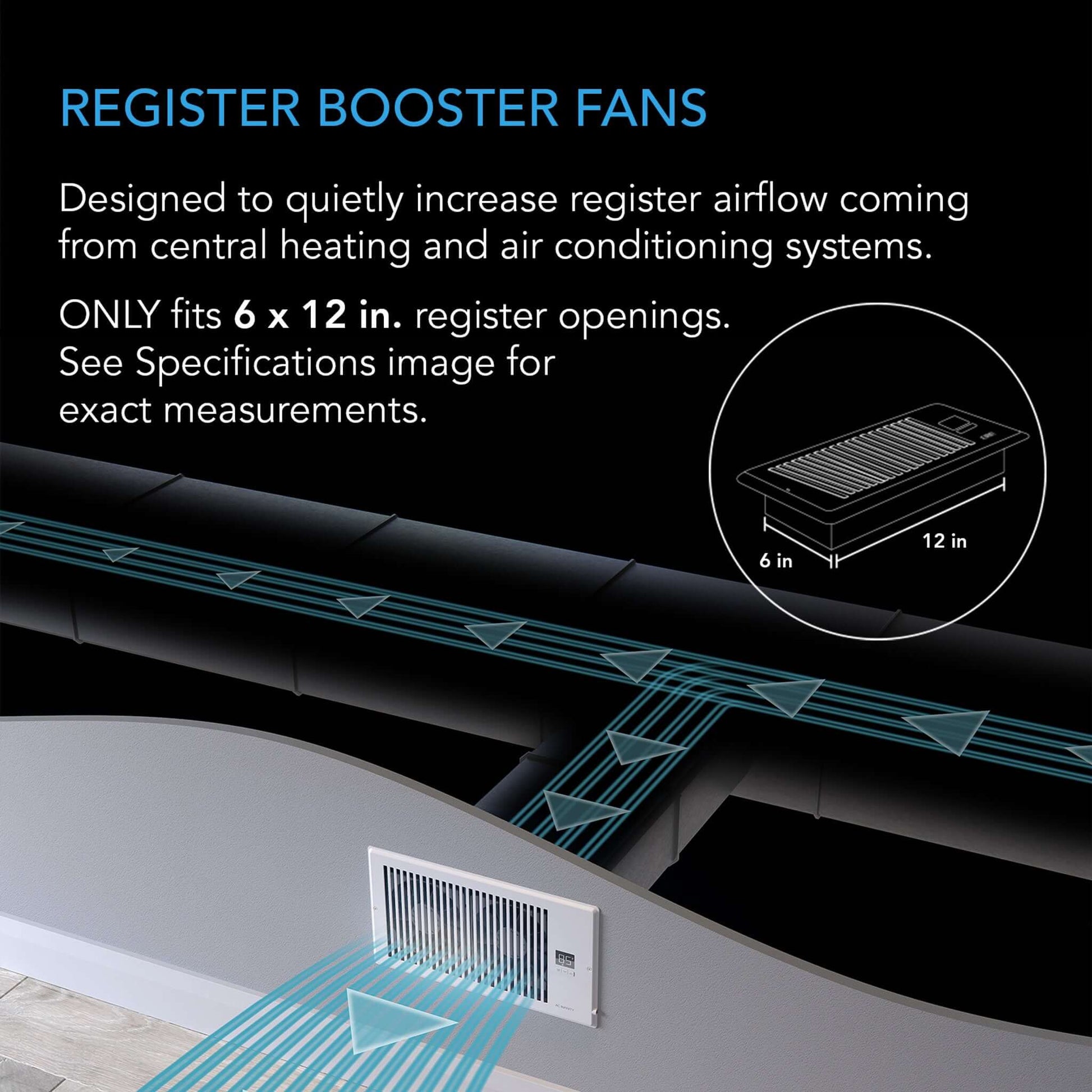

  • Quiet Fan System: This system is specifically designed to enhance the airflow from HVAC systems in wall and floor registers. The fan delivers quiet, efficient performance to improve room comfort and decrease energy expenses.
  • Programmable LCD Controller: The system comes with a programmable LCD controller offering thermostat control for heating and cooling. It also allows customization of fan speeds, facilitating smarter temperature regulation.
  • Premium Aluminum Frame: The fan system is bordered by a high-quality aluminum frame featuring CNC-machined detailing and finished in matte white for a sleek, professional look.
  • High-Performance Fans: The system features stator-blade fans designed for strong airflow delivery, even from high static-pressure ductwork. The fan system fits ONLY 6 x 12 inch registers. Other specifications include a dual 120 mm engine, airflow of 160 CFM, noise level of 20 Dba, and a white color.

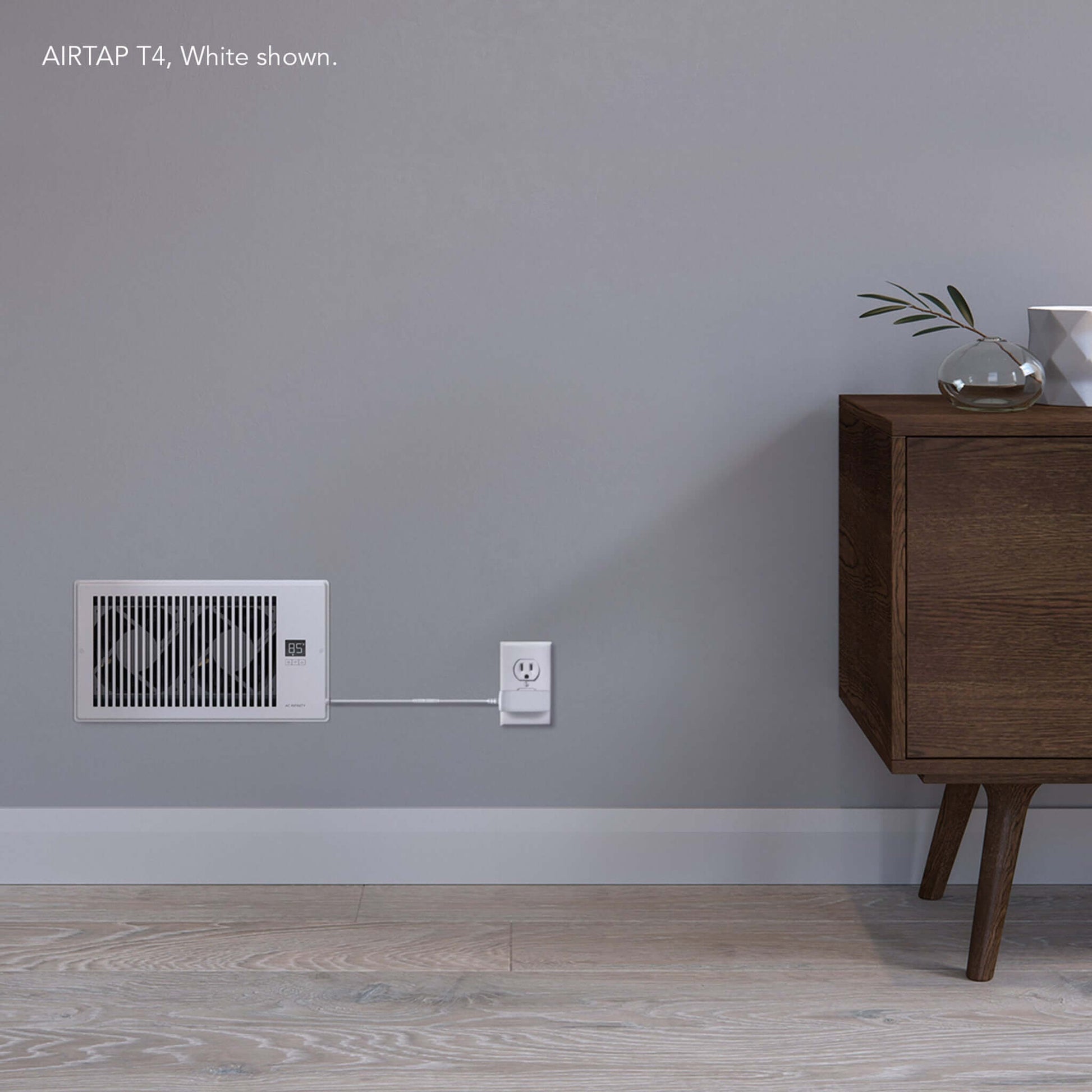

  • Efficient Product Design: The fan system is designed for mounting on wall or floor registers to augment airflow. It comes complete with the hardware and power supply required for installation and operation.

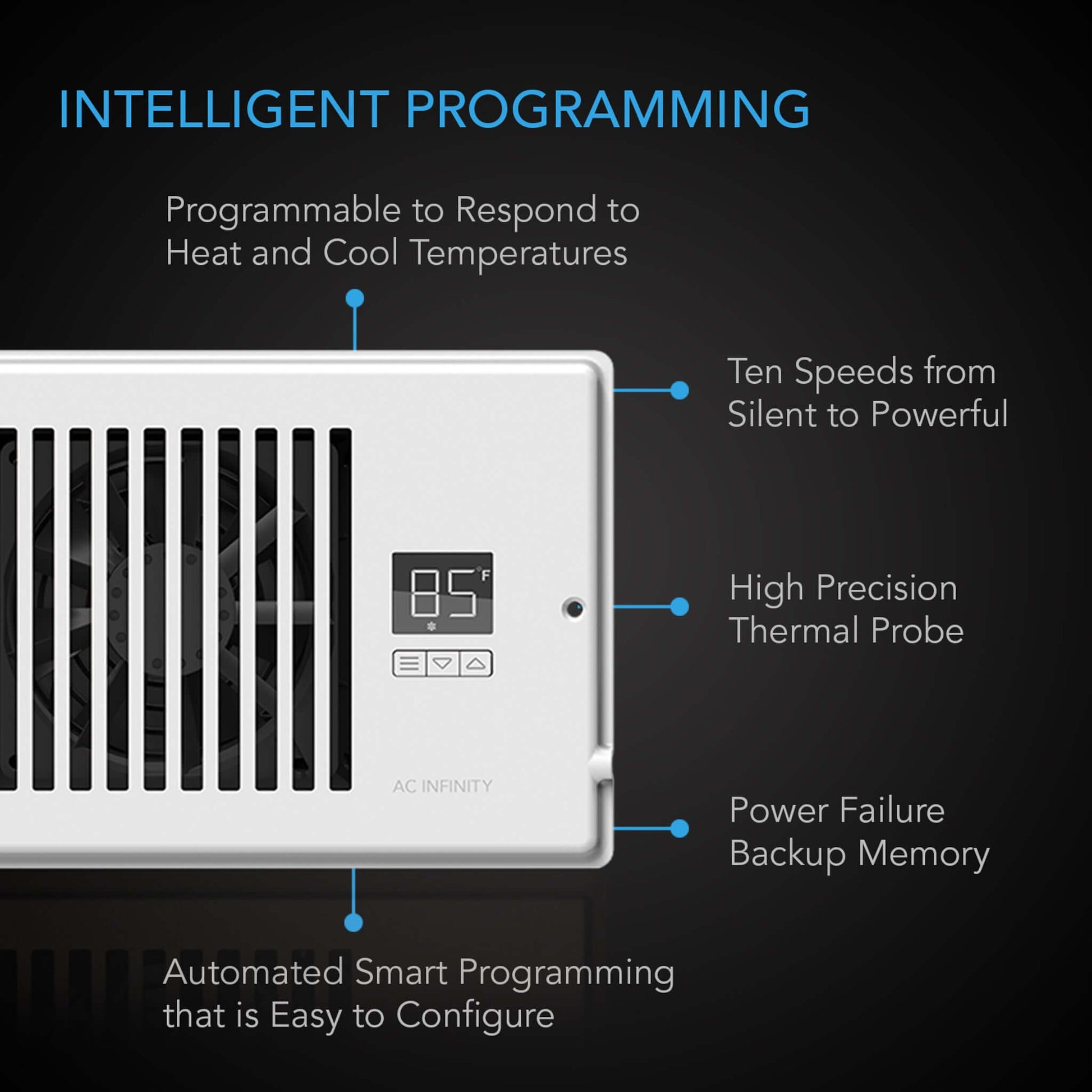

  • Intelligent Programming: The system's controller provides active thermal monitoring that can trigger fan operation based on your set heating and cooling temperatures. Other features include temperature display, easy power on-off, and backup memory.

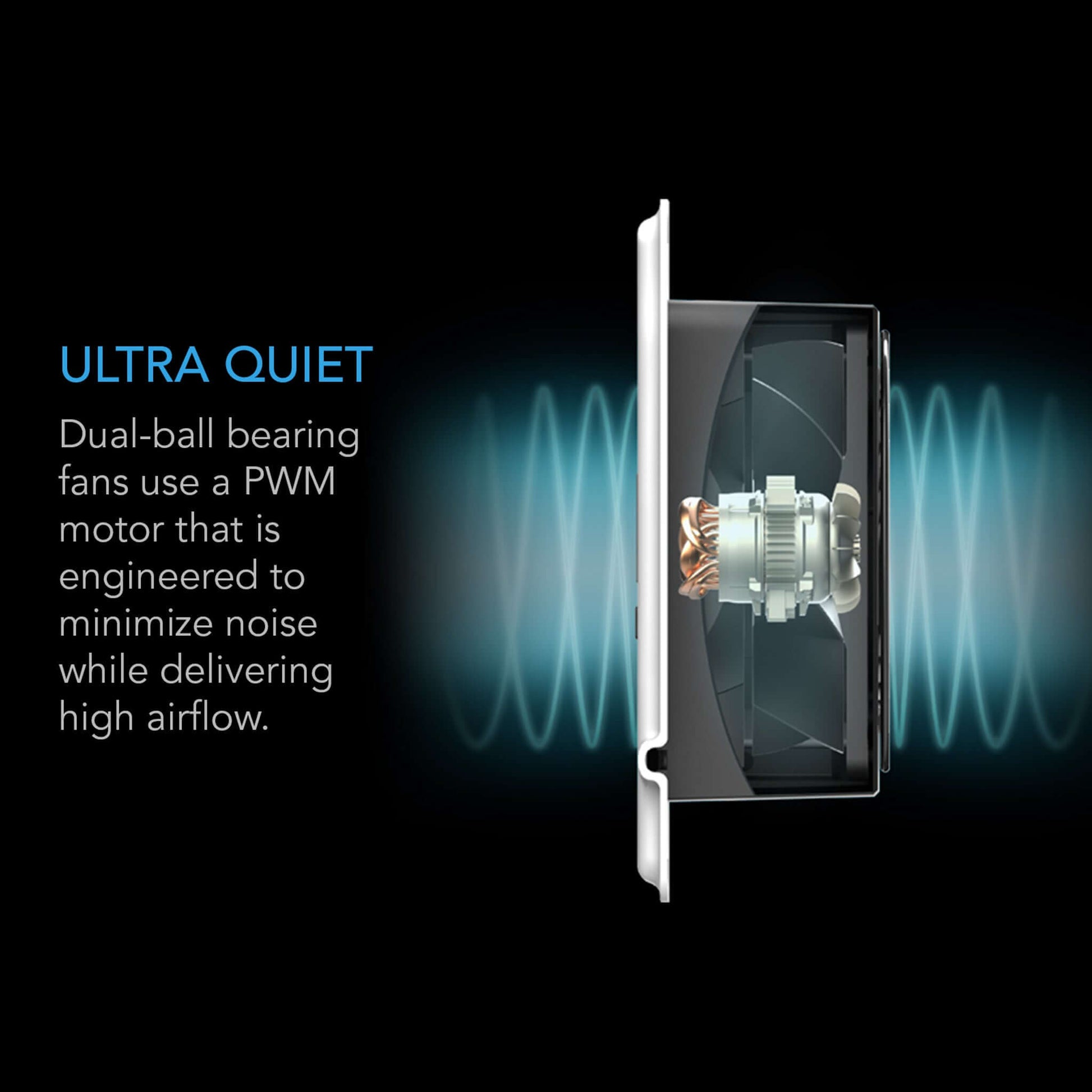

  • Stator-Blade PWM Fans: This system employs high-performance DC-motors controlled using PWM (Pulse Width Modulation), allowing for smooth fan operation at very low RPM speeds without generating excessive noise. The fans, designed for high static pressure applications, are perfect for delivering airflow in restricted areas like ductwork. The dual ball bearings in the motor are certified by CE and RoHS, have a rated lifespan of 67,000 hours, and allow the fan system to be mounted horizontally or vertically.
  • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRTAP T6, White
  • Product Model: AC-RBF62-W
  • UPC Code: 819137020634

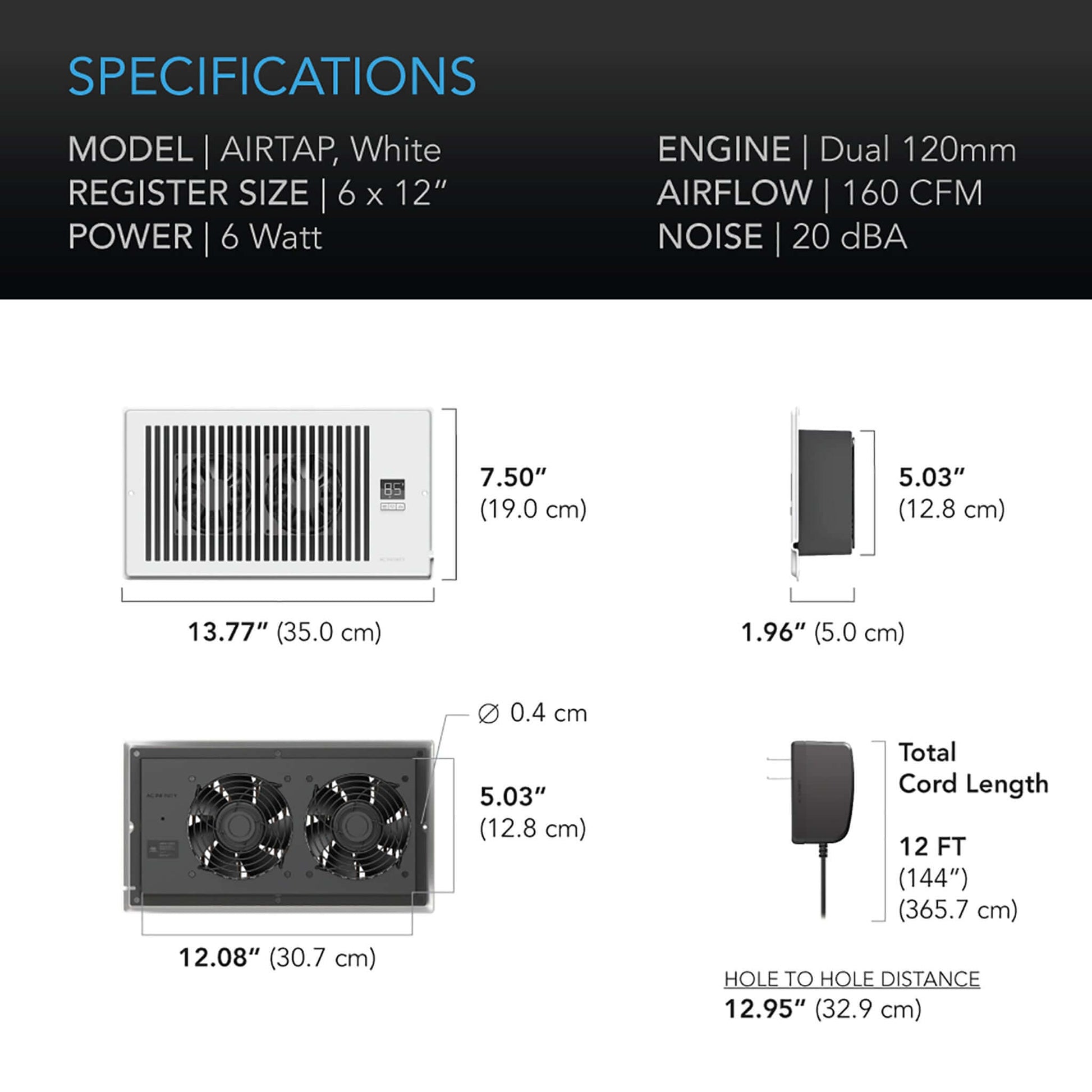

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 13.77 x 7.51 x 1.96 in. (35.0 x 19.1 x 5.0 cm)
  • Backside Enclosure Dimensions: 12.12 x 5.07 in. (30.8 x 12.9 cm)
  • Hole to Hole Distance: 12.95 in. (32.9 cm)
  • Screw Hole Size: Ø 0.197 in (Ø 0.4 cm)
  • Cord Length: 144 in. (12 feet)
  • Product Performance and Technical Specs
  • Fits Register Sizes: 6 x 12 in.
  • Design: White
  • Total Airflow: 160 CFM
  • Total Noise: 20 dBA
  • Static Pressure: 6.5 mm-H2O
  • Operating Voltage: 12V DC
  • Power: 6 W
  • Current: 0.4 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 158°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
