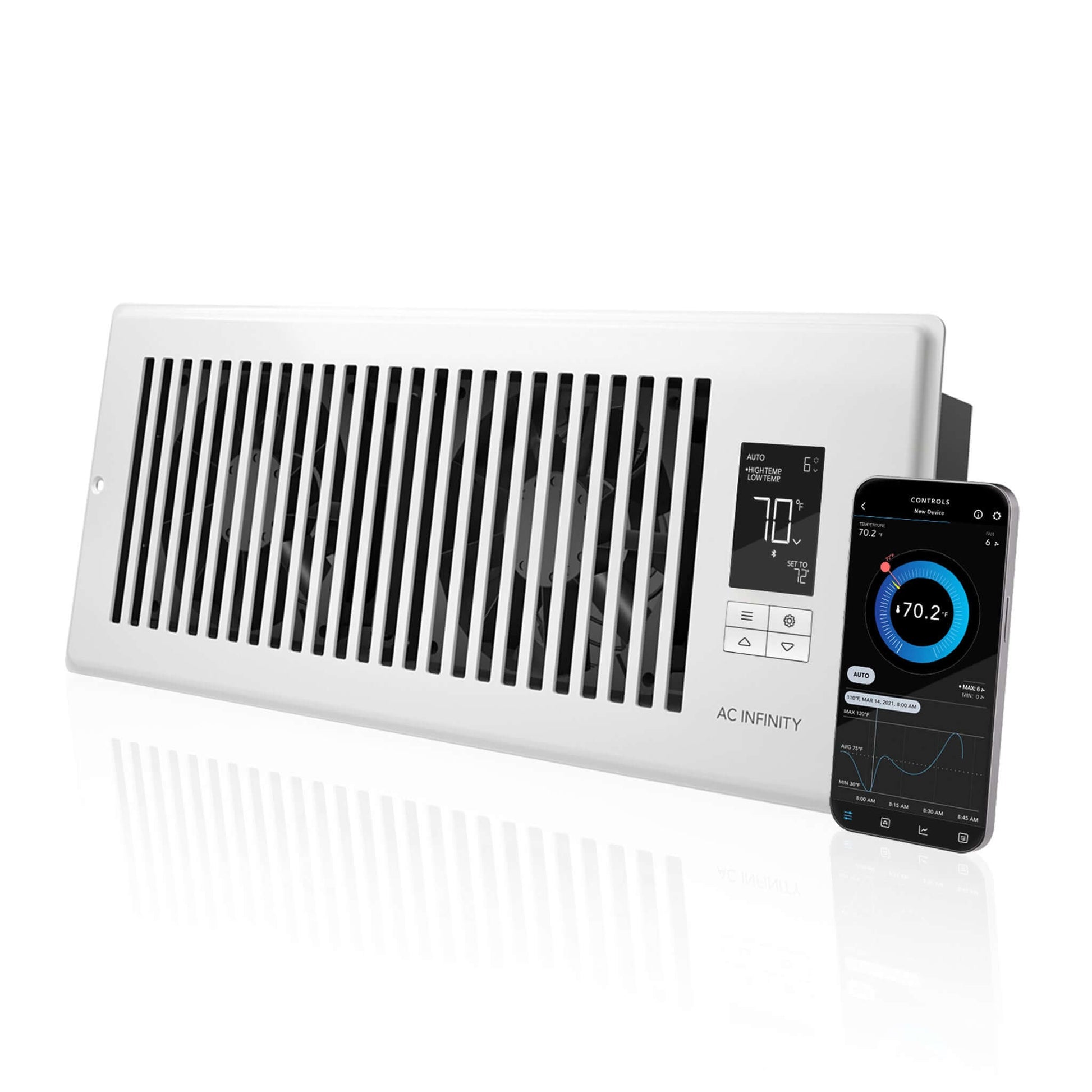

AC Infinity AIRTAP T4, Quiet Register Booster Fan System, White, for 4" x 12" Registers

AC Infinity AIRTAP T4, Quiet Register Booster Fan System, White, for 4" x 12" Registers

$68.99 USD
$0.00 USD $68.99 USD
Sale Sold out
Description

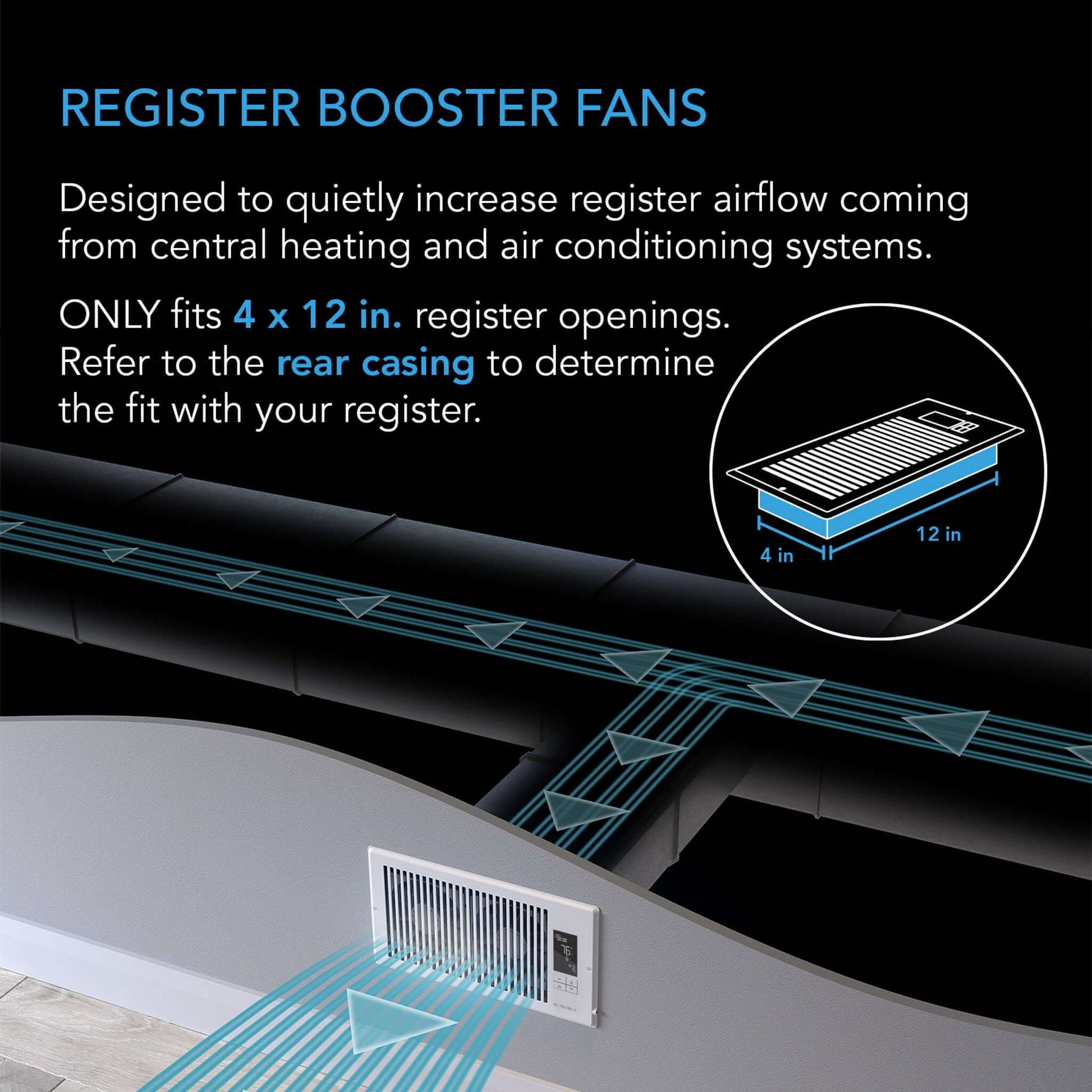

  • Register Fan Design: Developed to enhance and ameliorate inherent airflow from register holes in home HVAC systems. This quiet register fan system is designed to improve airflow from your central air conditioning or heating system, improving the comfort level of your rooms while reducing energy costs.

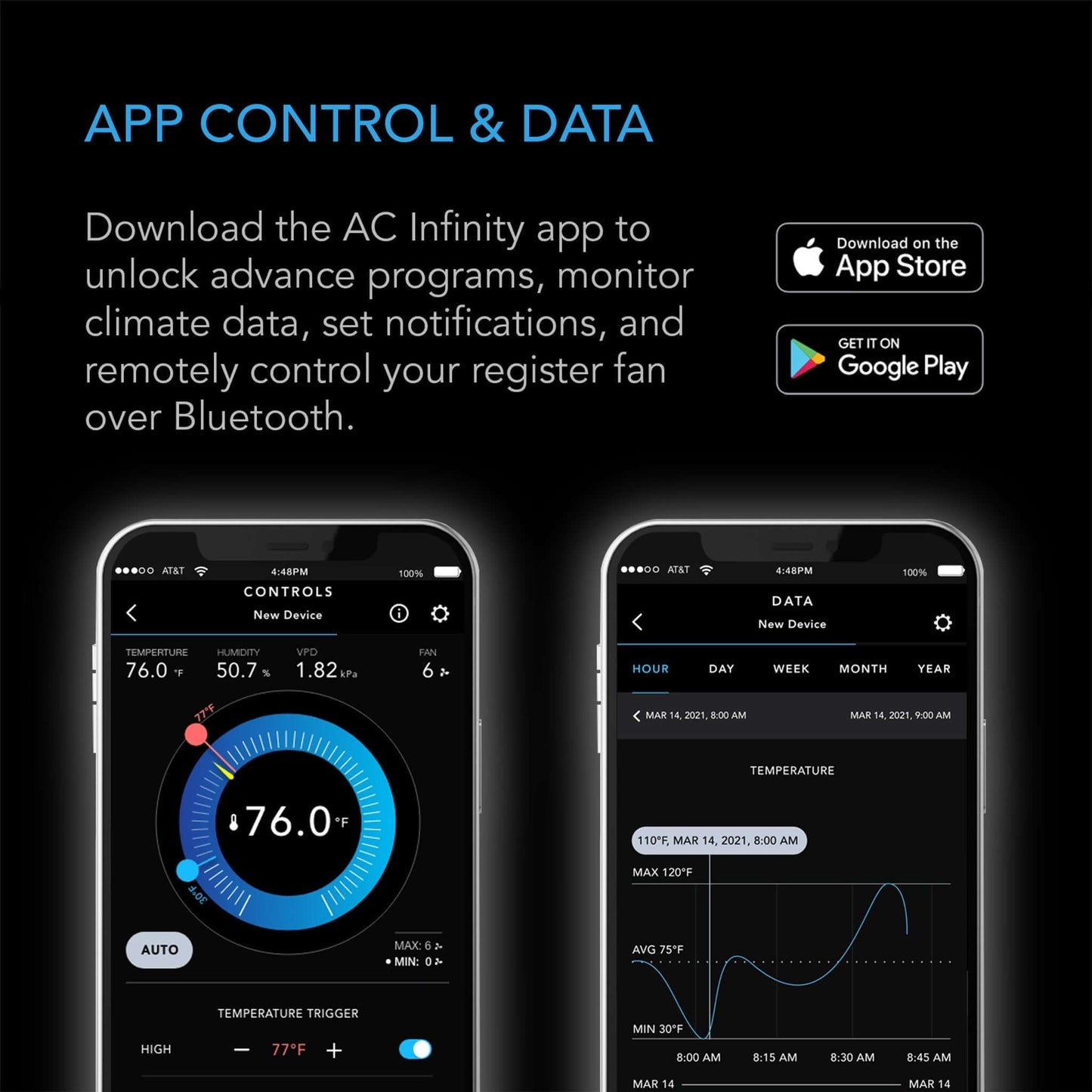

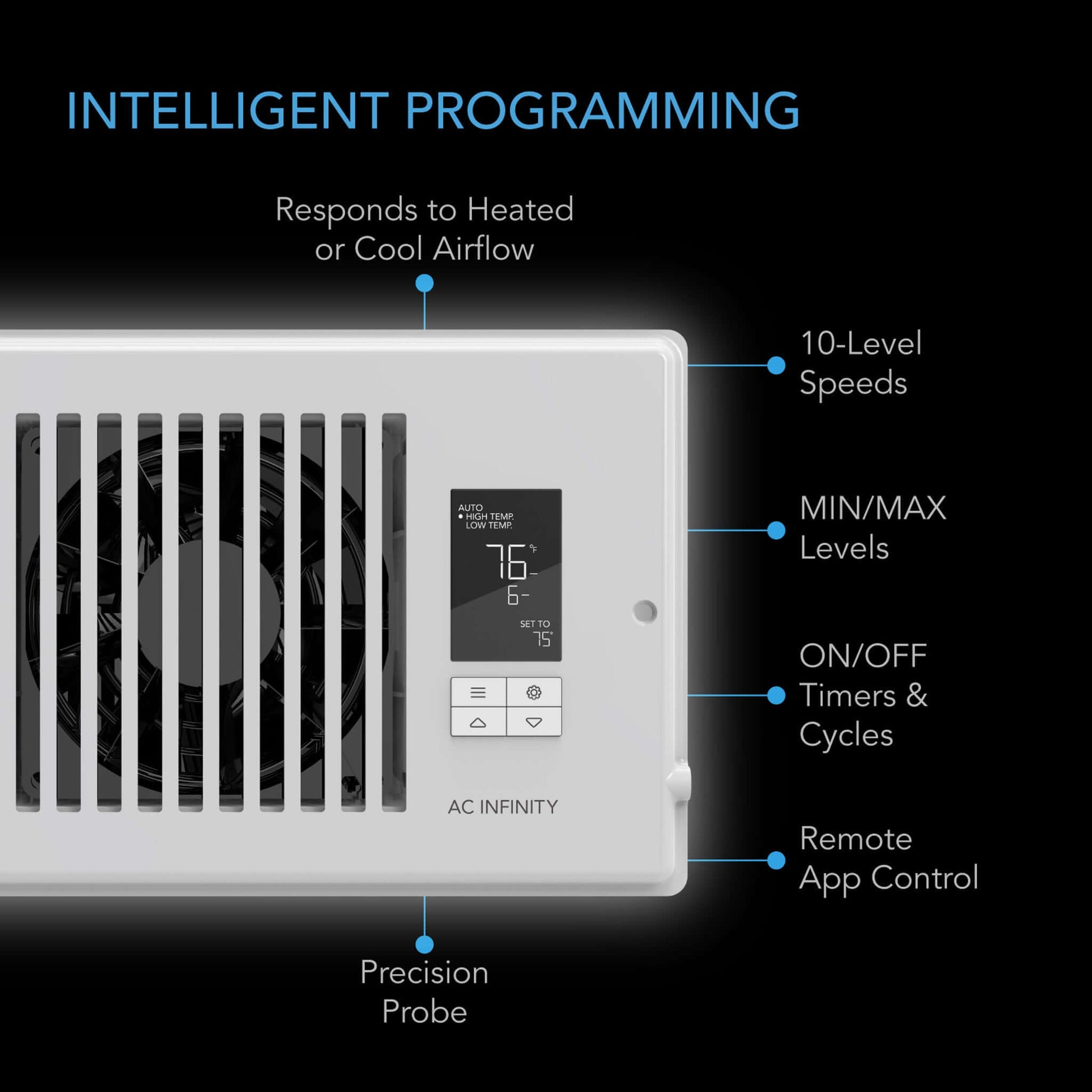

  • Smart Controller: Equipped with cooling and heating triggers, timer and cycle programming, and 10-level speeds. By accessing these controls through the AC Infinity application using Bluetooth, one can customize and control the register booster fan remotely.

  • Advanced Programming: The onboard controller performs active thermal monitoring, with temperature triggers activating this register fan when heating or cooling thresholds are exceeded. The fan operates at low speeds for consistent airflow, with timer and cycle modes for on-demand activation. Advanced programming, alarms and notifications, historical data, and CSV data exporting can be accessed through the AC Infinity application via Bluetooth.

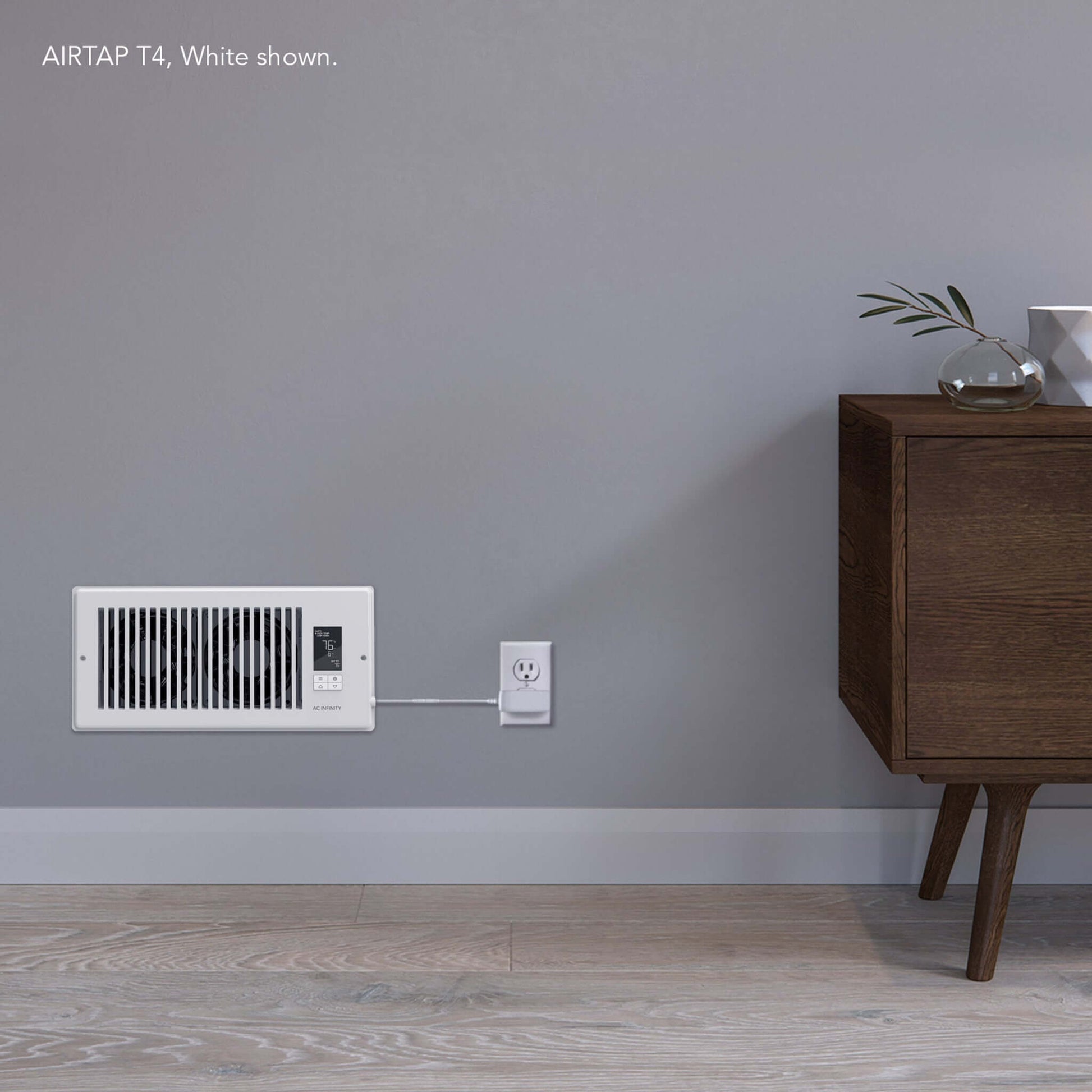

  • Premium Aesthetic: Showcases a superior anodized aluminum frame with CNC-machined detailing, presenting a flush and clean appearance to your register. The white register booster fan is specifically designed to fit 4 x 12 in. Registers, providing a coherent and seamless installation.

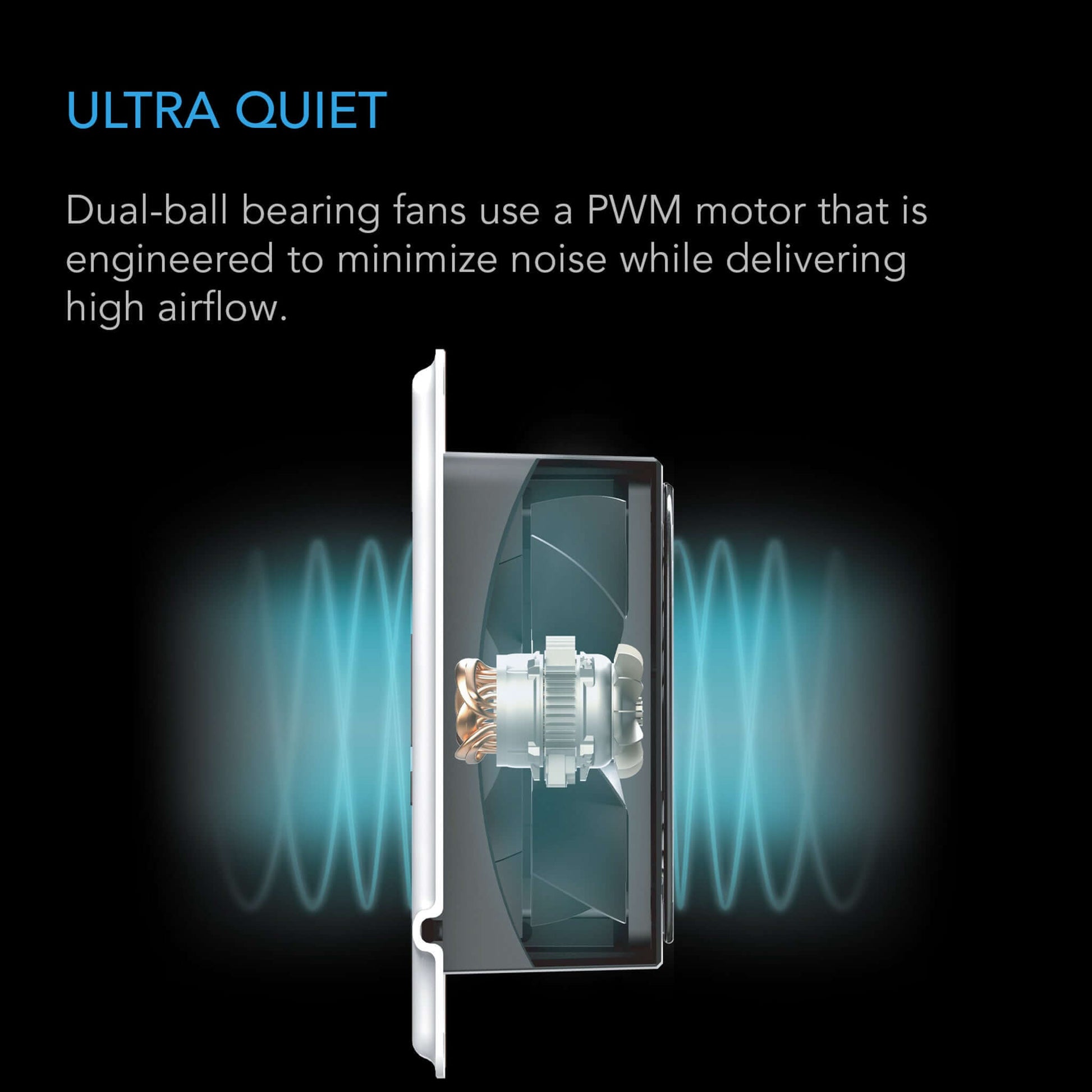

  • High-Performance DC Motor: This system consists of a high-performance DC motor, controlled using Pulse Width Modulation (PWM). The technology allows the dual 92mm fans to operate smoothly at extremely low RPM speeds without creating motor or electromagnetic noises. Housing dual ball bearings rated at 67,000 hours and certified by CE and RoHS, this register fan system ensures durability, reliability, and heavy-duty performance, producing an airflow of 130CFM at a noise level of 17db.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: AIRTAP T4, White
  • Product Model: AC-RBF42-W
  • UPC Code: 819137020658

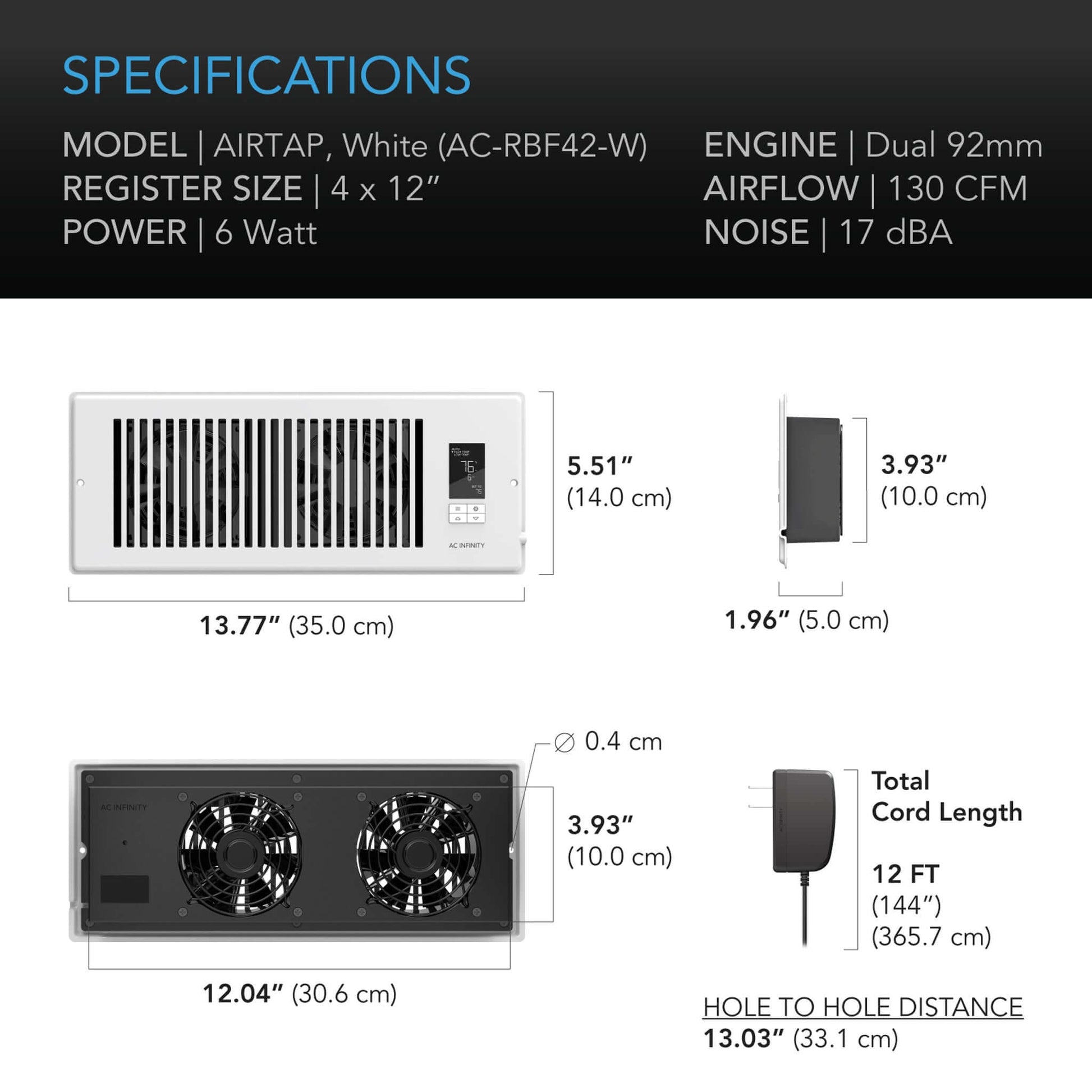

  • Product and Mounting Dimensions - Fan Unit
  • Total Dimensions: 13.77 x 5.51 x 1.96 in. (35.0 x 14.0 x 5.0 cm)
  • Backside Enclosure Dimensions: 9.72 x 3.93 in. (24.7 x 10.0 cm)
  • Hole to Hole Distance: 12.95 in. (32.9 cm)
  • Screw Hole Size: Ø 0.197 in (Ø 0.4 cm)
  • Cord Length: 144 in. (12 feet)

  • Product Performance and Technical Specs
  • Fits Register Sizes: 4 x 12 in.
  • Design: White
  • Total Airflow: 130 CFM
  • Total Noise: 17 dBA
  • Static Pressure: 6.5 mm-H2O
  • Operating Voltage: 12V DC
  • Power: 6 W
  • Current: 0.4 A
  • Wall Adapter Input: 100 to 240V AC
  • Operating Humidity: 35 to 85% RH
  • Operating Temperature: 0 to 158°F
  • Fan Bearings: Dual Ball
  • Mounting Positions: Horizontal or Vertical
  • L10 Life Expectancy: 67,000 Hours
