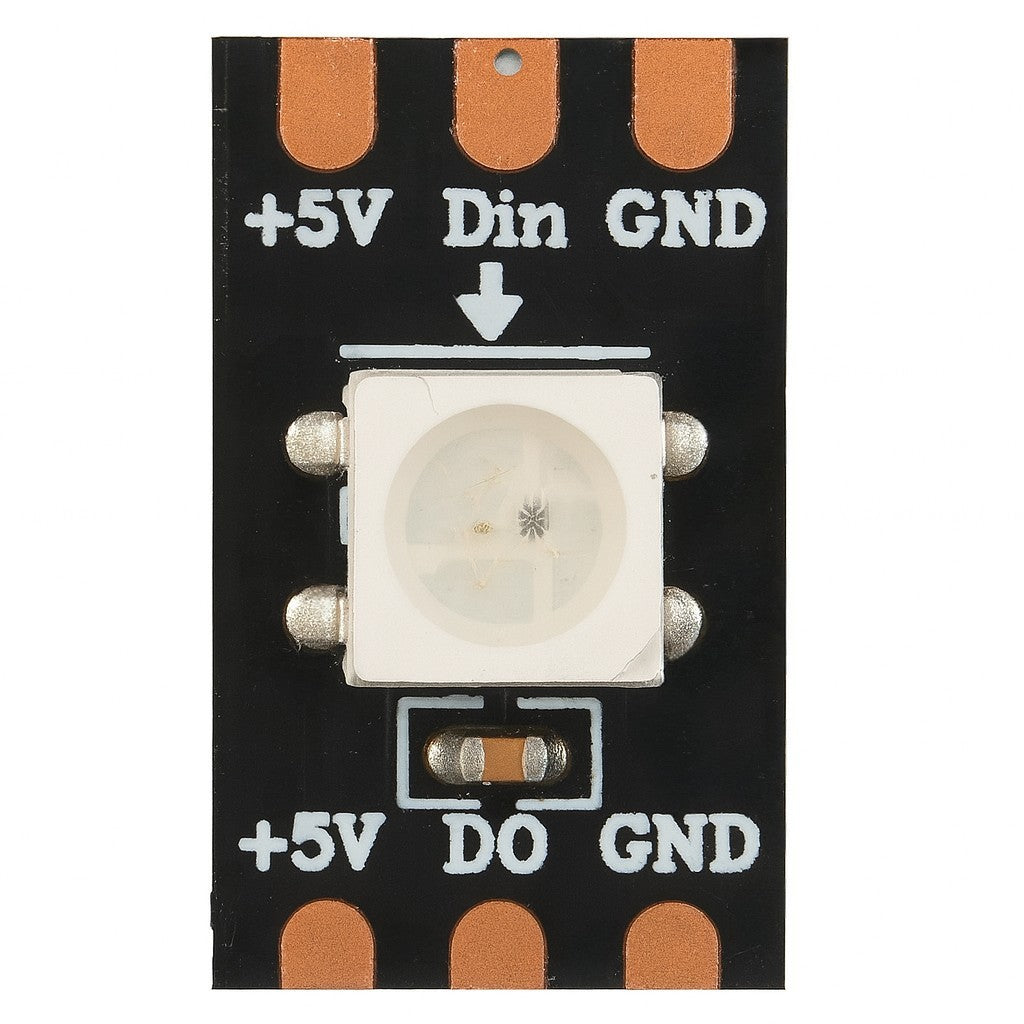

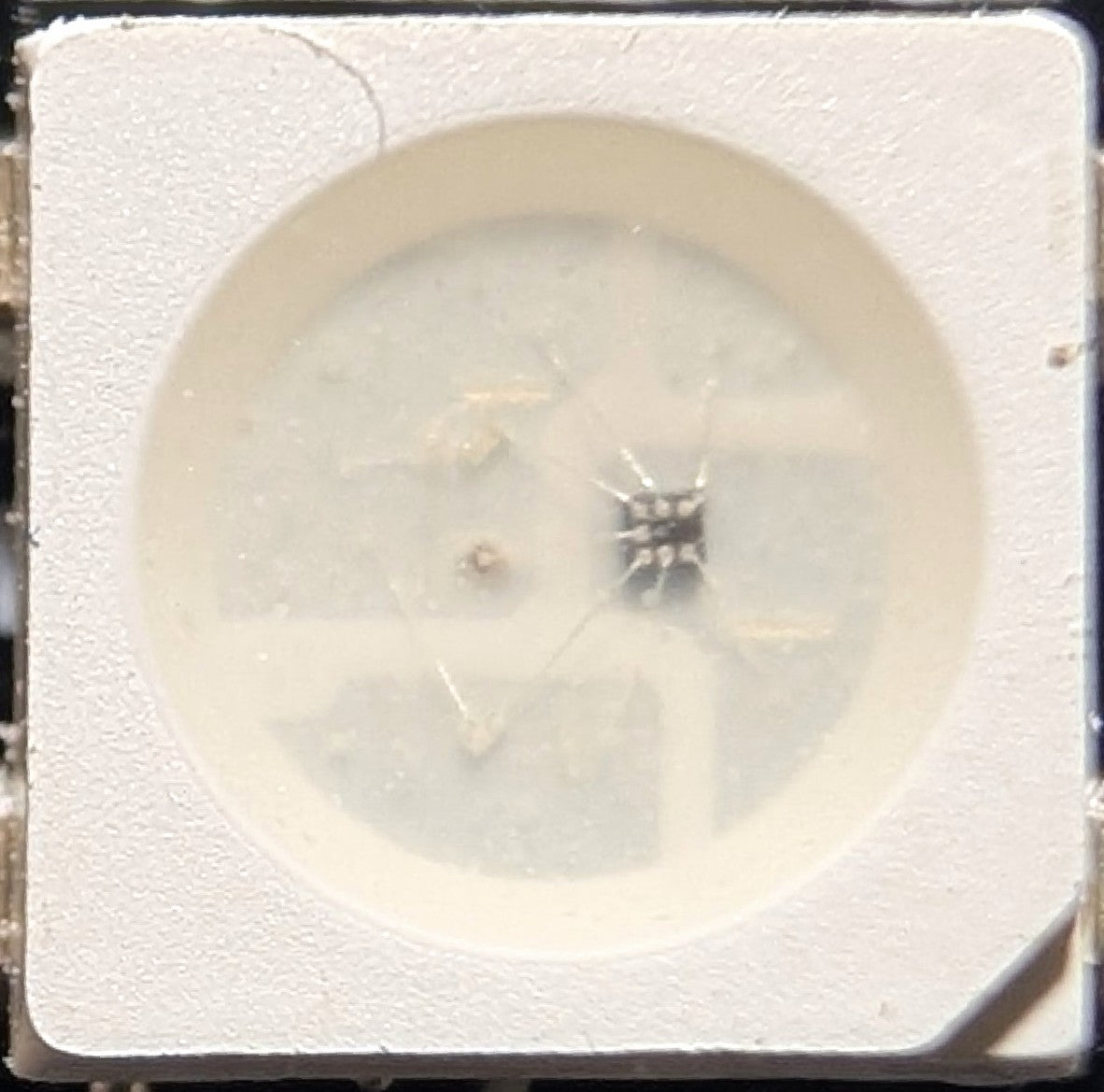

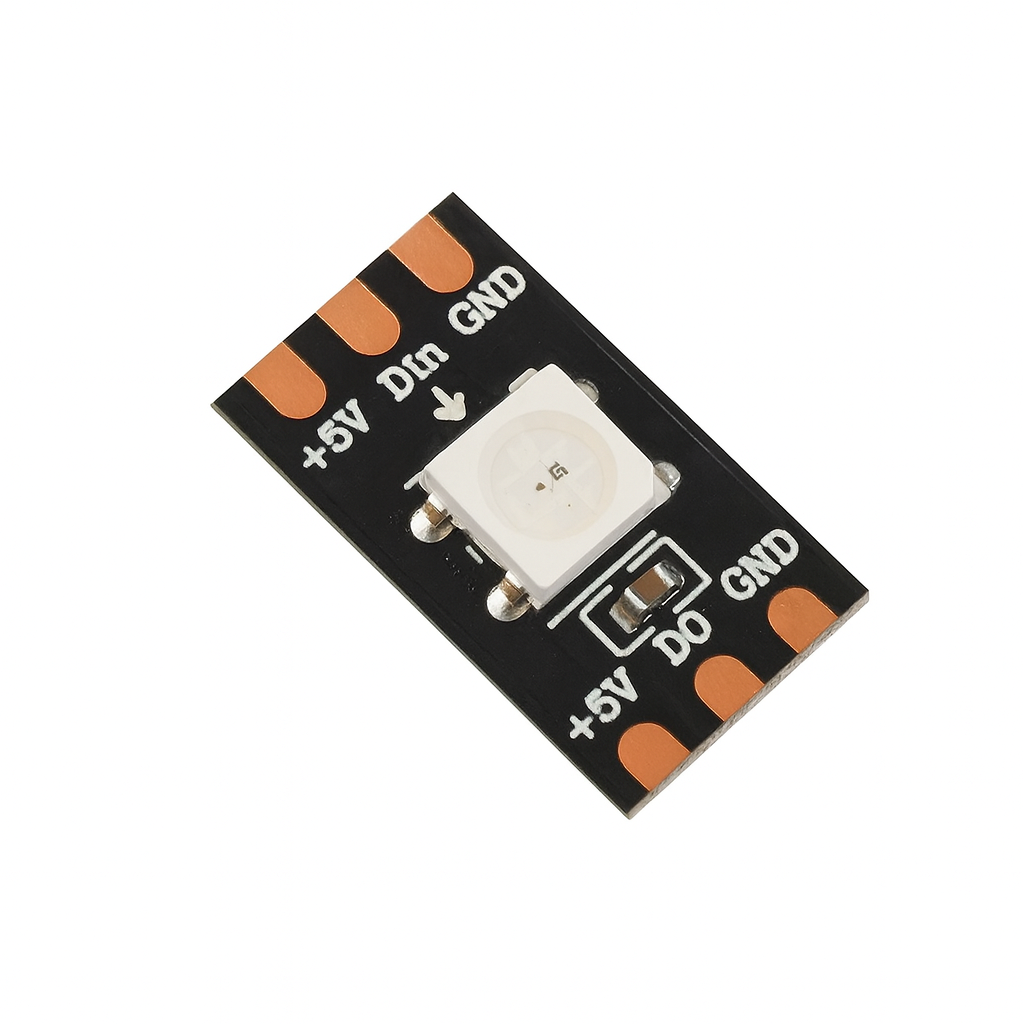

WS2812B Single RGB Addressable LED – 5V 5050 SMD

This individual WS2812B RGB addressable LED is perfect for anyone who wants a single smart pixel for repairs, small builds, or custom electronics. Each LED includes its own integrated driver, giving you full control over color, brightness, and timing through one data line. No additional ICs or signal shifters are required when operating at 5V.

These LEDs work seamlessly with Arduino, ESP8266, ESP32, and other microcontroller platforms. They’re fully compatible with popular lighting firmware such as WLED and ESPHome, making them an easy drop-in option for home automation projects or Wi-Fi–controlled lighting effects. Since the WS2812B accepts a 5V logic signal, you can connect the data input directly to a microcontroller GPIO pin without level shifting, assuming proper grounding and wire lengths are observed.

Offering smooth 24-bit color and support for effects like fades, waves, chases, and reactive animations, this LED is an excellent choice for prototyping, learning addressable lighting, repairing a strip, or embedding a single pixel into a compact design.

Features

Individual WS2812B RGB LED pixel

5V DC operation (power and logic)

Direct GPIO-to-data-line compatibility on 5V microcontrollers

Works with Arduino, ESP8266, ESP32, Raspberry Pi, and similar boards

Fully supported by WLED, ESPHome, FastLED, and NeoPixel libraries

24-bit full-color output with smooth dimming and effects

5050 SMD package suitable for custom PCBs or strip repairs

Power Information

One LED draws up to ~0.3W at full white. Use only with a regulated 5V supply.

Ideal For

Strip pixel replacement, Arduino learning projects, WLED/ESPHome smart lighting builds, wearables, props, prototypes, or any DIY project where you need just one fully controllable RGB LED.

If you order more than one, it will come as a full strip uncut.
