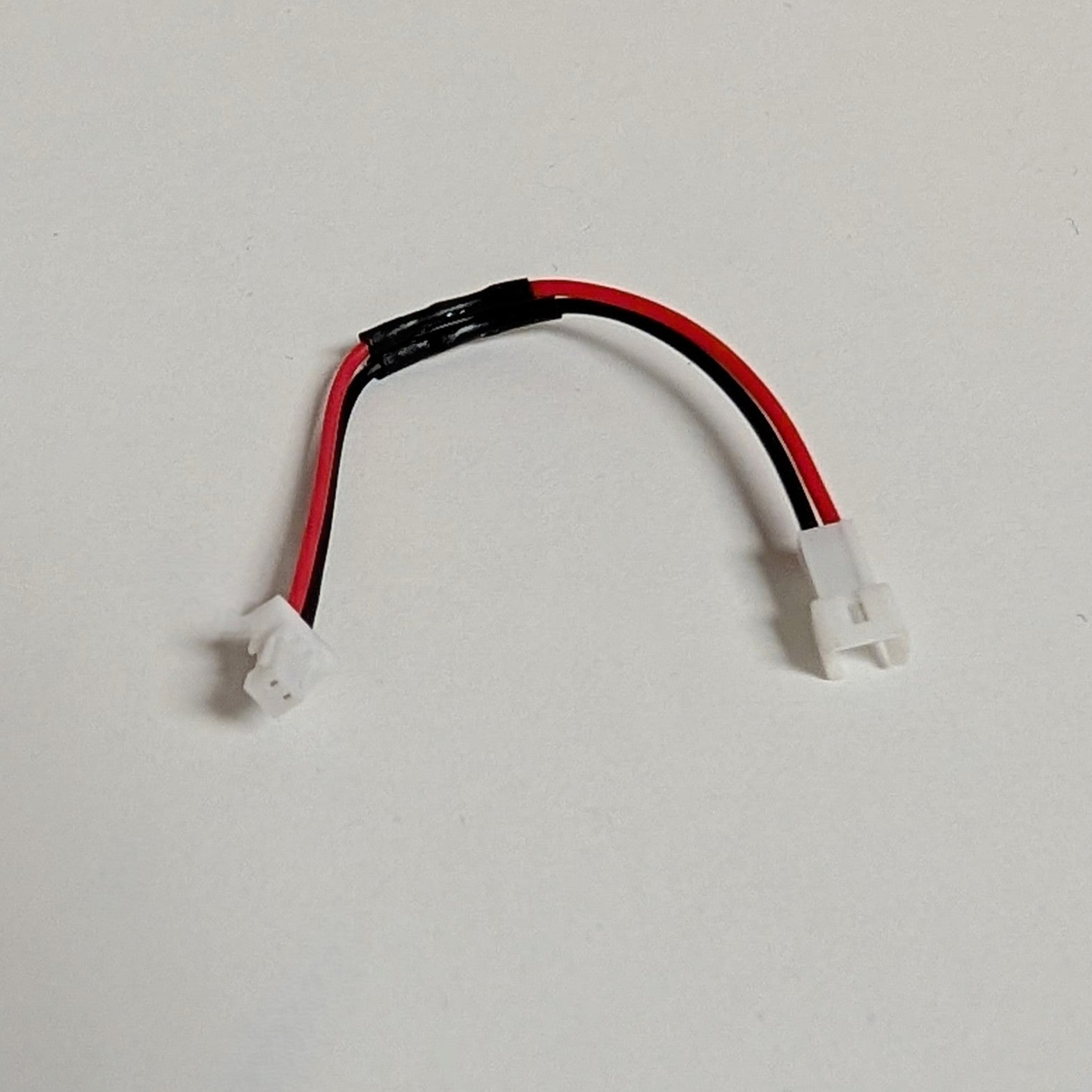

Molex PicoBlade 1.25mm Female to JST SH 1.0mm Male Adapter Cable – 2-Pin (60mm Length)
Molex PicoBlade 1.25mm Female to JST SH 1.0mm Male Adapter Cable – 2-Pin (60mm Length)
No reviews
Regular price
$4.99 USD
Regular price
Sale price
$4.99 USD
Unit price
/
per
Couldn't load pickup availability
Easily connect Molex PicoBlade 1.25mm systems to JST SH 1.0mm ports with this compact 2-pin adapter cable. Designed for drones, wearables, sensors, and tight embedded layouts, this cable converts a female Molex PicoBlade to a male JST SH connector.
The default length is 60mm, but you can request custom lengths up to 180mm via our live chat—perfect for tailored wiring in dense or modular builds.
Specifications:
- Connector A: Molex PicoBlade 1.25mm – 2-pin female
- Connector B: JST SH 1.0mm – 2-pin male
- Length: 60mm default (custom lengths up to 180mm available via chat)
- Wire Gauge: 26 AWG UL1007
- Voltage Rating: 30V max
- Current Rating: Up to 1.5A
- Temperature Rating: -20°C to +85°C
- Cable Type: Stranded copper, PVC insulated
- Compliance: RoHS
Key Features:
- Seamlessly adapts between two common micro pitch standards
- Durable pre-crimped connectors – no special tools needed
- Compact 60mm length fits snug electronic layouts
- 26 AWG wire handles more current and flex than thinner gauges
